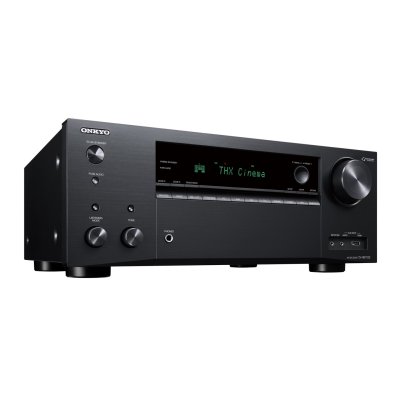

ONKYO TX-NR7100 + KLIPSCH RP-500M II + RP-500C II + RP-500M II + RP-1000SW SET

/////////ONKYO TX NR7100 Features

PRODUCT HIGHLIGHTS

220 W/Ch THX® Certified Select Dynamic Audio Amplification systemIMAX® Enhanced certified for immersive signature sound by DTS:X®5.2.4-ch/7.2.2-ch Dolby Atmos® and DTS:X playbackSupports Dirac Live® Room Correction20Hz to 20kHzAccuReflex phase-matching solution for Atmos-enabled speakersSMART AV ReceiverWorks with Sonos, Chromecast built-in, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming servicesWorks with Hey Google or AlexaSold separatelyStream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standardHDMI® inputsInputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0).HDMI 2.1HDMI 2.1 features that are supported on HDMI inputs 16, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out).HDMI Sub/Zone 2 Out for media transmission to a second displaySend or receive audio via Bluetooth® wireless technologyRX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX/ aptX HDRefined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playbackZone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks

Specs

AMPLIFIER

Power output (All channels)220 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz20 kHz, 0.08% THD, 2-ch driven, FTC)Dynamic power250 W (3 ohms, Front) 220 W (4 ohms, Front) 130 W (8 ohms, Front)THD+N (Total Harmonic Distortion + Noise)0.08% (20 Hz20 kHz, half power)Input sensitivity and impedance200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)Rated RCA output level and impedance1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)Frequency response10 Hz100 kHz/+1 dB, -3 dB (Direct/Pure Audio)Tone control±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)Signal-to-noise ratio106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)Speaker impedance416 ohms

TUNER

FM87.5 MHz107.9 MHzAM530 kHz1,710 kHzFM/AM preset memory40 stations

GENERAL

Power supplyAC 120 V~, 60 HzPower consumption (operating)750 WPower consumption (idle)75 WPower consumption (standby)0.1 WDimensions (W x H x D)17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)Weight22.9 lbs. (10.4 kg)

UPC Code




CARTON

Dimensions (W x H x D)21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)Weight29.8 lbs. (13.5 kg) //////////////KLIPSCH RP-500M II FREQUENCY RESPONSE 50-25kHz +/- 3dB




SENSITIVITY* 92dB @ 2.83V / 1m*




POWER HANDLING (CONT/PEAK) 75W/300W




NOMINAL IMPEDANCE 8 Ohms Compatible




CROSSOVER FREQUENCY 1530Hz




HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid




Cross-Section Expanded Tractrix® Horn




LOW FREQUENCY DRIVER 5.25" Cerametallic Cone Woofer with Faraday rings




ENCLOSURE MATERIAL MDF (Internally Braced)




ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port




INPUTS Single aluminum binding posts




HEIGHT INCHES (MM) 13.56" (34.4 cm)




WIDTH INCHES (MM) 6.81" (17.3 cm)




DEPTH INCHES (MM) 10.65" (27.0 cm)




PRODUCT WEIGHT LBS (KG) 13.1lb (5.95kg)




FINISH Ebony, Walnut /////////////////KLIPSCH RP-500C II FREQUENCY RESPONSE 56-25kHz +/- 3dB

SENSITIVITY* 94dB @ 2.83V / 1m*




POWER HANDLING (CONT/PEAK) 100W/400W




NOMINAL IMPEDANCE 8 Ohms Compatible




CROSSOVER FREQUENCY 1630Hz




HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid




Cross-Section Expanded Tractrix® Horn




LOW FREQUENCY DRIVER Dual 5.25" Cerametallic Cone Woofers with Faraday rings




ENCLOSURE MATERIAL MDF (Internally Braced)




ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port




INPUTS Single aluminum binding posts




HEIGHT INCHES (MM) 6.87" (17.4 cm)




WIDTH INCHES (MM) 19.34" (49.1 cm)




DEPTH INCHES (MM) 10.58" (26.9 cm)




PRODUCT WEIGHT LBS (KG) 18.3lb (8.30kg)




FINISH Ebony, Walnut




ACCESSORIES Angle screw /////////////KLIPSCH RP-1000SW FREQUENCY RESPONSE 19Hz - 131Hz +/- 3dB

MAXIMUM ACOUSTIC OUTPUT 118.5dB




AMPLIFIER TYPE Class D with Analog Preamp Stage




AMPLIFIER POWER 300W RMS / 600W Peak




WOOFER 10" Ultra Long Throw Cerametallic




ENCLOSURE MATERIAL MDF




ENCLOSURE TYPE Bass Reflex via Front-Firing
