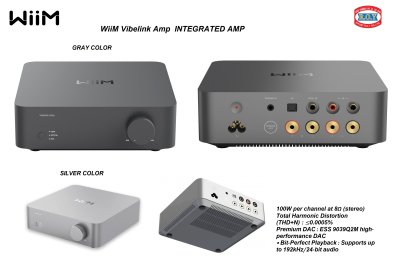

WIIM VIBELINK AMP INTEGRATED AMP WITH DAC 100W PERCHANAL

Dimensions and Weight

Dimensions： 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)

Weight： 2.05 kg (4.5 lbs)

Power input: 100-240V, 50/60Hz AC, 3A Max




Power & Amplification




Output Power : 100W per channel at 8Ω (stereo)

Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology

Total Harmonic Distortion (THD+N) : 0.0005%

Signal-to-Noise Ratio (SNR) : 120dB

Frequency Response: 20Hz 20kHz ± 0.5dB

Impedence Range: 3~8 ohms

Audio Processing




Premium DAC : ESS 9039Q2M high-performance DAC

Bit-Perfect Playback : Supports up to 192kHz/24-bit audio

Dynamic Range : 120dB for high-resolution sound

Pure Analog Input : No ADC conversion, maintaining signal integrity

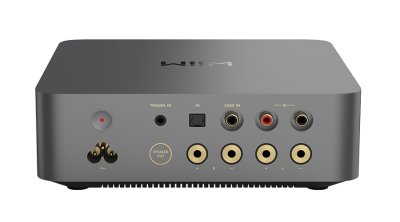

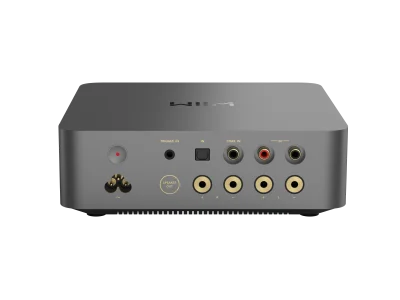

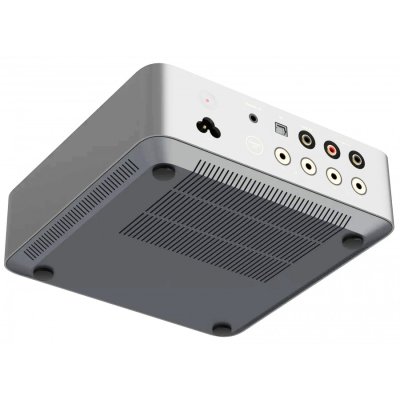

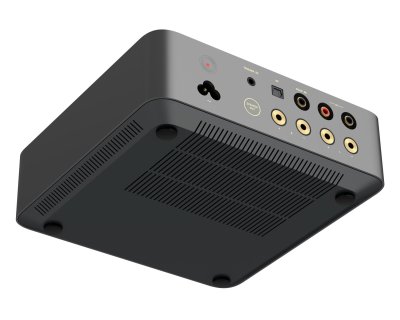

Input & Output Options




Analog Inputs:

1x RCA Stereo (Line-In, pure analog signal path)

Digital Inputs:

1x Optical (TOSLINK) Up to 192kHz/24-bit

1x Coaxial (S/PDIF) Up to 192kHz/24-bit

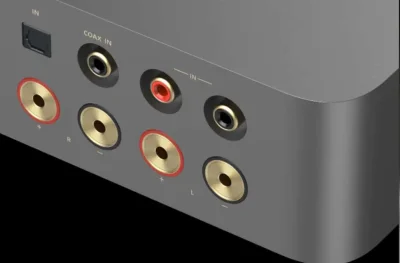

Speaker Outputs:

Gold-plated binding posts (supports banana plugs or bare wire connections)

Trigger & Power Management:

12V Trigger In: Auto power-on with compatible devices

Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Supported Audio Formats




PCM up to 192kHz/24-bit (through digital sources)

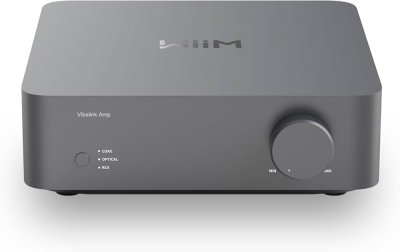

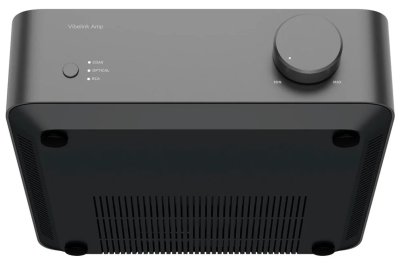

Control Interfaces

Volume Knob: Adjusts volume

LED Indicator: Three 4-color RGBW LED indicates source input and device status

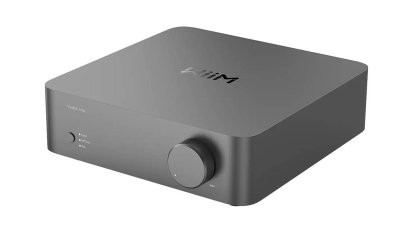

Build & Design




Chassis: Premium unibody aluminum for durability & heat dissipation

Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control

Cooling System: Passive, silent operation

Package Contents




Use Guide *1

Power Cable *1

RCA Cable *1

Optical Cable *1

Banana Plugs *4
