ONKYO TX-NR6100 + KLIPSCH RP-500M II + RP-500C II + RP-500M II + RP-1000SW SET

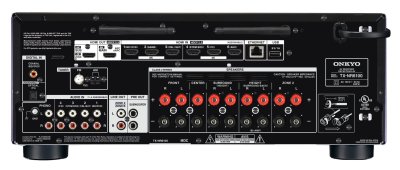

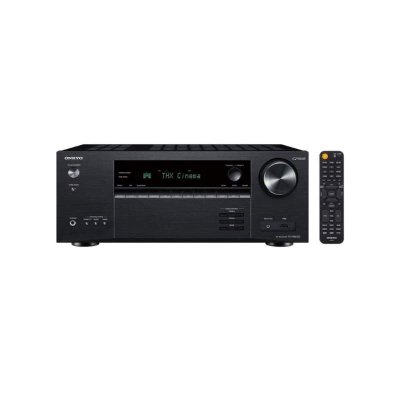

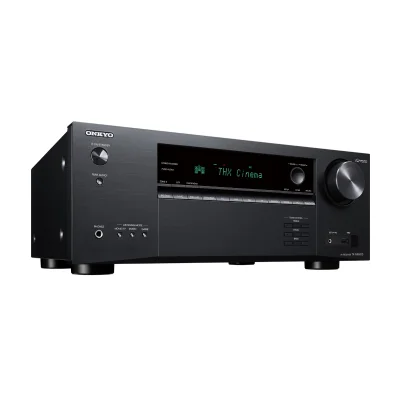

//////////ONKYO TX-NR 6100 Specs

AMPLIFIER

Power output (All channels)210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz20 kHz, 0.08% THD, 2-ch driven, FTC)Dynamic power240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)THD+N (Total Harmonic Distortion + Noise)0.08% (20 Hz20 kHz, half power)Input sensitivity and impedance200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)Rated RCA output level and impedance1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)Frequency response10 Hz100 kHz/+1 dB, -3 dB (Direct/Pure Audio)Tone control±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)Signal-to-noise ratio106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)Speaker impedance416 ohms

TUNER

FM87.5 MHz107.9 MHzAM530 kHz1,710 kHzFM/AM preset memory40 stations

GENERAL

Power supplyAC 120 V~, 60 HzPower consumption (operating)635 WPower consumption (idle)65 WPower consumption (standby)0.1 WDimensions (W x H x D)17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)Weight21.7 lb (9.8 kg)




CARTON

Dimensions (W x H x D)21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)Weight27.7 lbs (12.5 kg)

ACCESSORIES INCLUDED

Power cordIndoor FM antennaAM loop antennaSpeaker setup microphoneQuick Start GuideRemote controlTwo AAA (R03) batteries //////////////KLIPSCH RP-500M II FREQUENCY RESPONSE 50-25kHz +/- 3dB

SENSITIVITY* 92dB @ 2.83V / 1m*

POWER HANDLING (CONT/PEAK) 75W/300W

NOMINAL IMPEDANCE 8 Ohms Compatible

CROSSOVER FREQUENCY 1530Hz

HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid

Cross-Section Expanded Tractrix® Horn

LOW FREQUENCY DRIVER 5.25" Cerametallic Cone Woofer with Faraday rings

ENCLOSURE MATERIAL MDF (Internally Braced)

ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port

INPUTS Single aluminum binding posts

HEIGHT INCHES (MM) 13.56" (34.4 cm)

WIDTH INCHES (MM) 6.81" (17.3 cm)

DEPTH INCHES (MM) 10.65" (27.0 cm)

PRODUCT WEIGHT LBS (KG) 13.1lb (5.95kg)

FINISH Ebony, Walnut /////////////////KLIPSCH RP-500C II FREQUENCY RESPONSE 56-25kHz +/- 3dB

SENSITIVITY* 94dB @ 2.83V / 1m*

POWER HANDLING (CONT/PEAK) 100W/400W

NOMINAL IMPEDANCE 8 Ohms Compatible

CROSSOVER FREQUENCY 1630Hz

HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid

Cross-Section Expanded Tractrix® Horn

LOW FREQUENCY DRIVER Dual 5.25" Cerametallic Cone Woofers with Faraday rings

ENCLOSURE MATERIAL MDF (Internally Braced)

ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix® Port

INPUTS Single aluminum binding posts

HEIGHT INCHES (MM) 6.87" (17.4 cm)

WIDTH INCHES (MM) 19.34" (49.1 cm)

DEPTH INCHES (MM) 10.58" (26.9 cm)

PRODUCT WEIGHT LBS (KG) 18.3lb (8.30kg)

FINISH Ebony, Walnut

ACCESSORIES Angle screw /////////////KLIPSCH RP-1000SW FREQUENCY RESPONSE 19Hz - 131Hz +/- 3dB

MAXIMUM ACOUSTIC OUTPUT 118.5dB

AMPLIFIER TYPE Class D with Analog Preamp Stage

AMPLIFIER POWER 300W RMS / 600W Peak

WOOFER 10" Ultra Long Throw Cerametallic

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass Reflex via Front-Firing Aerofoil Slot Port

INPUTS Dual RCA/LFE Line In, WA-2 Wireless Port

HEIGHT 16.64" (42.3 cm)

WIDTH 15.00" (38.1 cm)

DEPTH 24.96" (63.4 cm)

WEIGHT 56.7 lbs (25.7 kg)

FINISH Ebony Vinyl
