ONKYO TX-NR6100 + KLIPSCH R-40M + R-50C + R-40M + R-101SW SET

//////////ONKYO TX-NR 6100 Specs

AMPLIFIER

Power output (All channels)210 W/Ch (6 ohms, 1 kHz, 10% THD,1-ch driven) 100 W/Ch (8 ohms, 20 Hz20 kHz, 0.08% THD, 2-ch driven, FTC)Dynamic power240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front)THD+N (Total Harmonic Distortion + Noise)0.08% (20 Hz20 kHz, half power)Input sensitivity and impedance200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM)Rated RCA output level and impedance1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out)Frequency response10 Hz100 kHz/+1 dB, -3 dB (Direct/Pure Audio)Tone control±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)Signal-to-noise ratio106 dB (Line, IHF-A) 80 dB (Phono, IHF-A)Speaker impedance416 ohms

TUNER

FM87.5 MHz107.9 MHzAM530 kHz1,710 kHzFM/AM preset memory40 stations

GENERAL

Power supplyAC 120 V~, 60 HzPower consumption (operating)635 WPower consumption (idle)65 WPower consumption (standby)0.1 WDimensions (W x H x D)17 1/8˝ x 6 13/16˝ x 14 15/16˝ (435 x 173.5 x 379.5 mm)Weight21.7 lb (9.8 kg)




CARTON

Dimensions (W x H x D)21˝ x 10 7/16˝ x 18 7/16˝ (534 x 265 x 468 mm)Weight27.7 lbs (12.5 kg)

ACCESSORIES INCLUDED

Power cordIndoor FM antennaAM loop antennaSpeaker setup microphoneQuick Start GuideRemote controlTwo AAA (R03) batteries / ///////////KLIPPSCH R-40M FREQUENCY RESPONSE 71Hz - 21kHz +/- 3dB

SENSITIVITY* 91 dB (In-Room)

POWER HANDLING (CONT/PEAK) 50W/200W

NOMINAL IMPEDANCE 8 ohms Compatible

CROSSOVER FREQUENCY 1,770 Hz

HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square

Tractrix® Horn

LOW FREQUENCY DRIVER Single 4" spun-copper TCP woofer

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass-Reflex via rear-firing ports

INPUTS Single Gold Plated Binding Posts

HEIGHT INCHES (MM) 11.7" (298 mm)

WIDTH INCHES (MM) 5.8" (146 mm)

DEPTH INCHES (MM) 8.5" (216 mm)

PRODUCT WEIGHT LBS (KG) 7 lbs (3.2 kg)

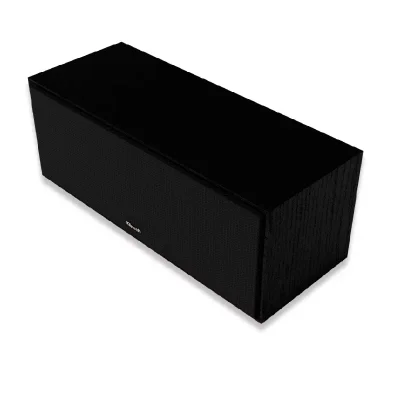

FINISH Black Textured Wood Grain Vinyl /////KLIPSCH R-50C FREQUENCY RESPONSE 90Hz - 21kHz +/- 3dB

SENSITIVITY* 96 dB (In-Room)

POWER HANDLING (CONT/PEAK) 100W/400W

NOMINAL IMPEDANCE 8 ohms Compatible

CROSSOVER FREQUENCY 1,650 Hz

HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square

Tractrix® Horn

LOW FREQUENCY DRIVER Dual 5.25" spun-copper TCP woofers

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Sealed

INPUTS Single Gold Plated Binding Posts

HEIGHT INCHES (MM) 7" (178 mm)

WIDTH INCHES (MM) 18.75" (476 mm)

DEPTH INCHES (MM) 8.2" (208 mm)

PRODUCT WEIGHT LBS (KG) 14 lbs (6.3 kg)

FINISH Black Textured Wood Grain Vinyl /////////////KLIPSCH R-101SW FREQUENCY RANGE 29.5Hz - 120Hz

MAXIMUM ACOUSTIC OUTPUT 115 dB

AMPLIFIER All Digital

AMPLIFIER POWER (CONT/PEAK) 150W/300W

AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On

DRIVER COMPONENTS 10" high excursion spun-copper TCP woofer

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass-Reflex via rear-firing port

INPUTS Line level/LFE RCA jacks

HEIGHT INCHES (MM) 14.6" (370 mm)

WIDTH INCHES (MM) 14.0" (356 mm)

DEPTH INCHES (MM) 19.7" (500 mm)

PRODUCT WEIGHT LBS (KG) 31 lbs (13.9 kg)

FINISHES Black Textured Wood Grain Vinyl
