ONKYO TX SR3100 + KLIPSCH R-40M + R-50C + R-40M + R-101SW SET

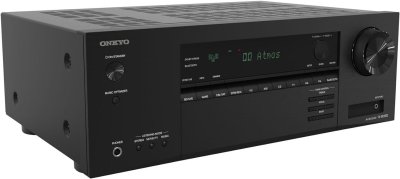

///////ONKYO SR3100 POWER AND

AMPLIFICATION

155w (1kHz, 10% THD, 1ch @ 6 ohms)

80w (20-20kHz, 0.08% THD, 2ch @ 8 ohms - FTC)

Class AB Amplifier

5.2 or 3.2.2 channels (5 amplified)

HDMI AND

VIDEO INPUTS

4 In / 1 Out (eARC)

8K/4K Ultra HD

Dolby Vision, HDR10+

8K/4K Ultra HD, Dolby Vision, HDR10+,

HDCP2.3, HDMI2.1a VRR, QFT, Dynamic HDR,

ALLM, DSC, SBTM

AUDIO IN/OUT 4 HDMI, 3 RCA, 1 Opt, 1 Coax inputs

2 preout subwoofer

Zone B stereo RCA lineout

SURROUND

MODES

Dolby Atmos, Dolby Surround

DTS:X, Neural:X

Dolby Atmos Height Virtualizer and DTS Virtual:X

KEY FEATURES 80 w/ch x 5ch, High current amplifier

Dolby Atmos®, DTS:X®

HDMI 2.1a - 8K/4K, HDCP2.3, Dolby Vision,

HDR10+, SBTM

5.2ch or 3.2.2ch processing with Dolby Atmos

height/surround virtualizer

Bluetooth®

DTS:X, DTS Virtual:X, Neural:X

AccuEQ Room Calibration

Klipsch Optimized Mode




435mm (17 1

/8)

160mm

(6 5

/16)

328mm

(12 15/16)

WEIGHT

EAN CODE

8.4 kgs

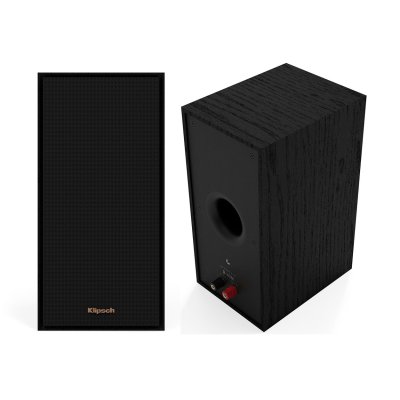

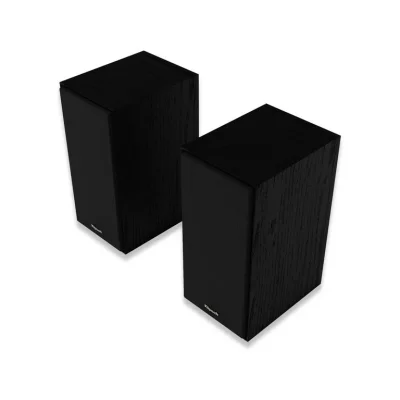

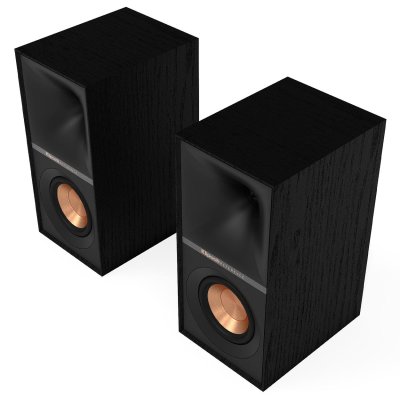

////////////KLIPPSCH R-40M FREQUENCY RESPONSE 71Hz - 21kHz +/- 3dB

SENSITIVITY* 91 dB (In-Room)

POWER HANDLING (CONT/PEAK) 50W/200W

NOMINAL IMPEDANCE 8 ohms Compatible

CROSSOVER FREQUENCY 1,770 Hz

HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square

Tractrix® Horn

LOW FREQUENCY DRIVER Single 4" spun-copper TCP woofer

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass-Reflex via rear-firing ports

INPUTS Single Gold Plated Binding Posts

HEIGHT INCHES (MM) 11.7" (298 mm)

WIDTH INCHES (MM) 5.8" (146 mm)

DEPTH INCHES (MM) 8.5" (216 mm)

PRODUCT WEIGHT LBS (KG) 7 lbs (3.2 kg)

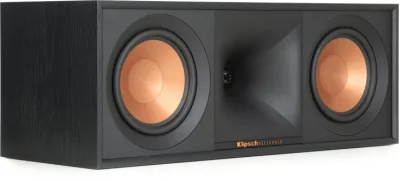

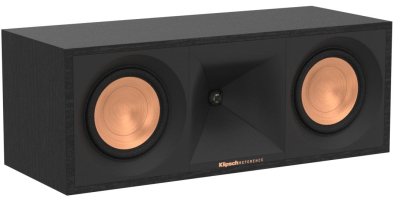

FINISH Black Textured Wood Grain Vinyl /////KLIPSCH R-50C FREQUENCY RESPONSE 90Hz - 21kHz +/- 3dB

SENSITIVITY* 96 dB (In-Room)

POWER HANDLING (CONT/PEAK) 100W/400W

NOMINAL IMPEDANCE 8 ohms Compatible

CROSSOVER FREQUENCY 1,650 Hz

HIGH FREQUENCY DRIVER 1" Aluminum LTS tweeter mated to a 90 x 90 square

Tractrix® Horn

LOW FREQUENCY DRIVER Dual 5.25" spun-copper TCP woofers

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Sealed

INPUTS Single Gold Plated Binding Posts

HEIGHT INCHES (MM) 7" (178 mm)

WIDTH INCHES (MM) 18.75" (476 mm)

DEPTH INCHES (MM) 8.2" (208 mm)

PRODUCT WEIGHT LBS (KG) 14 lbs (6.3 kg)

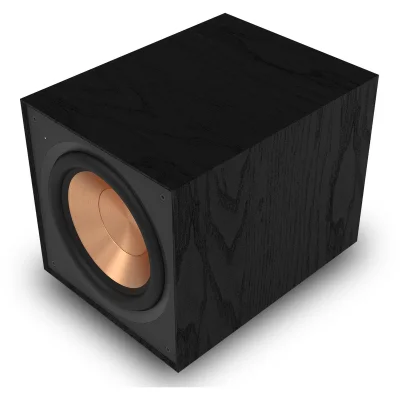

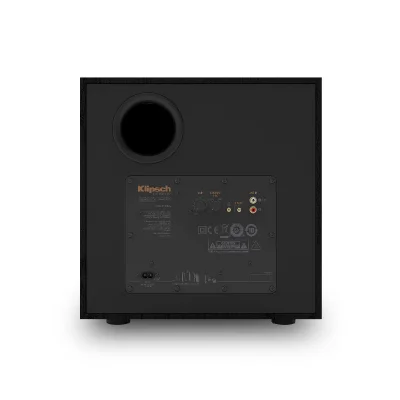

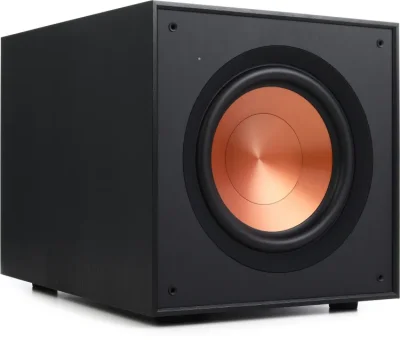

FINISH Black Textured Wood Grain Vinyl /////////////KLIPSCH R-101SW FREQUENCY RANGE 29.5Hz - 120Hz

MAXIMUM ACOUSTIC OUTPUT 115 dB

AMPLIFIER All Digital

AMPLIFIER POWER (CONT/PEAK) 150W/300W

AMPLIFIER FEATURES Volume, Low-pass, 0/180 phase, Auto Power On

DRIVER COMPONENTS 10" high excursion spun-copper TCP woofer

ENCLOSURE MATERIAL MDF

ENCLOSURE TYPE Bass-Reflex via rear-firing port

INPUTS Line level/LFE RCA jacks

HEIGHT INCHES (MM) 14.6" (370 mm)

WIDTH INCHES (MM) 14.0" (356 mm)

DEPTH INCHES (MM) 19.7" (500 mm)

PRODUCT WEIGHT LBS (KG) 31 lbs (13.9 kg)

FINISHES Black Textured Wood Grain Vinyl
