IFI AUDIO ZEN Blue 3 Bring lossless Bluetooth to your Hi-Fi or headphone

Specifications

CHIPSETBluetooth:

Qualcomm QCC518x Series.




DSP:

CT5302




DAC:

ES9023




Amp:

MAX97220DNR109dB (0dBFS @ 1kHz)INPUTRX Mode:

Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC)




TX Mode:

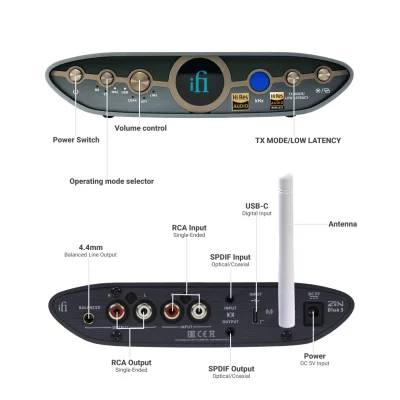

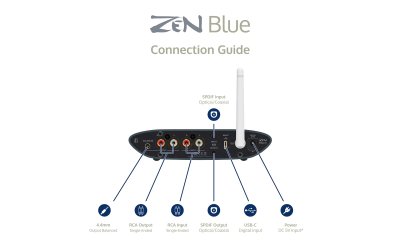

USB, Optical, Coaxial, RCA L/R (Analogue)




DAC Mode:

USB, Optical, Coaxial, RCA L/R (Analogue)LIMITED WARRANTY12 Months*MAXIMUM SUPPORTED SAMPLE RATERX Mode:

96kHz/24Bit




TX Mode:

96kHz/24Bit




DAC Mode:

96kHz/24Bit (USB), 192kHz/24Bit (Optical/Coaxial)NET WEIGHT447 g (0.99 lbs)OUTPUT IMPEDANCEBalanced 4.4mm:

102Ω




Single-Ended RCA:

51ΩOUTPUT VOLTAGEBalanced 4.4mm:

4.1Vrms (0dBFS@1kHz)




Single-Ended RCA:

2.05Vrms (0dBFS@1kHz)SNR109dBTHD+N< 0.005% (10K Load)@(20-20kHz)POWER SUPPLY REQUIREMENTUSB-C or DC 5V/0.5A (centre +ve) Contenido de la caja:

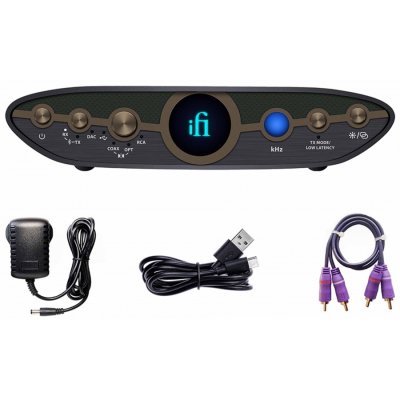

Receptor Bluetooth ZEN Blue 3

Adaptador de corriente 5V

Cable RCA 6"

Cable USB-A a USB-C

Tarjeta de instrucciones

Tarjeta de garantía

Características técnicas

Bluetooth:

SI Bluetooth 5.4 (aptX sin pérdida, aptX adaptativo, aptX, LDAC, LHDC/HWA, AAC, SBC)

Formatos de Audio:

aptX sin pérdida, aptX adaptativo, aptX, LDAC, LHDC/HWA, AAC, SBC

DAC-USB:

96 kHz/24 bits (USB-C)

Salida Balanceada:

Si 4.4 mm

Rango de frecuencia (Hz):

20 Hz - 20 kHz

Dimensiones (An x Al x Pr):

158 x 35 x 115 mm

Peso (Kg):

0.447
