POLK AUDIO LEGEND L800 L-R + L400 + L200 SET L SERIE

////////////// L800 OVERALL

Total Pieces

8

Included Accessories

(1) Cleaning cloth

(1) Removable Magnetic Grille

(4) Rubber Carpet-Spike Covers

(1) SDA Interconnect Cable (12 ft)

Optional Accessories

(1) L900 Height Module Speaker - Drops into top of tower for Dolby Atmos and DTS:X height channels

Carton 1

151 lbs (68.5 kg)

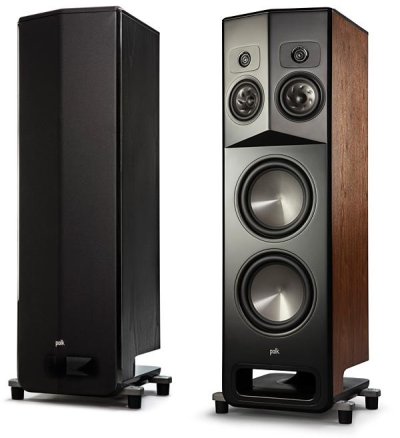

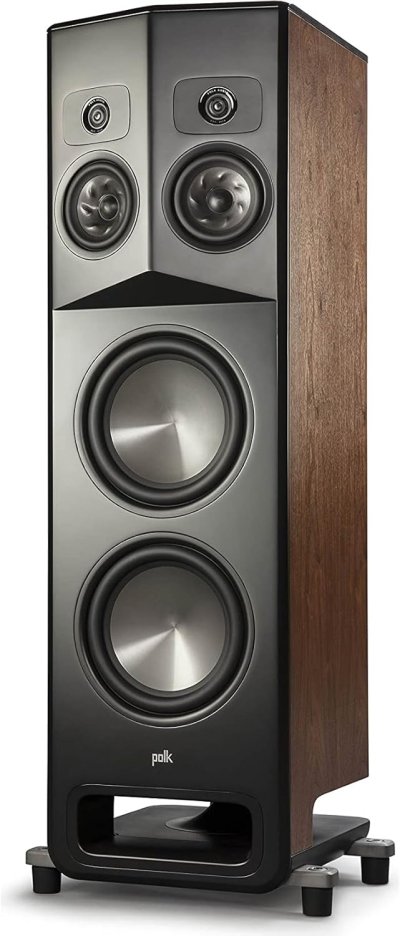

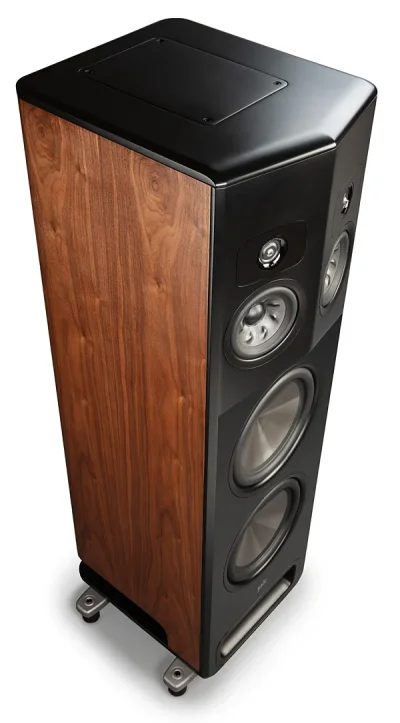

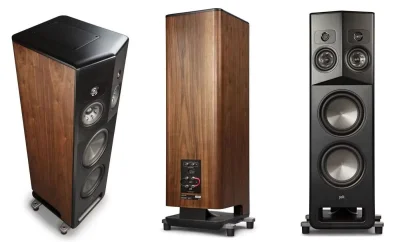

L800 Floorstanding Tower Speaker

Total Pieces

1

Height

48.6" (123.45 cm)

Width

17.94" (45.56 cm)

Depth

17.38" (44.14 cm)

Weight

118 lbs (53.5 kg)

Driver Enclosure Type

Power Port Bass Vented with Sealed Midrange

Driver Complement

(2) 1" (2.54 cm) d (Round) Pinnacle Ring Radiator - Tweeter

(2) 5.25" (13.34 cm) d (Round) Turbine Cone - Midrange

(2) 10" (25.4 cm) d (Round) - Mid/Woofer

Recommended Amplifier Power Setting

100W

Total Frequency Response

24 Hz 50,000 Hz

Nominal Impedance Range

2.8 ohms 4 ohms

Sensitivity (1 watt @ 1 meter)

87 dB

Lower and Upper -3dB Limits

32 Hz 38,000 Hz

Type

3-way Orth Crossover (x2)

Midrange Woofer Crossover Frequency

370 Hz

Tweeter Midrange Crossover Frequency

2800 Hz

Power Handling per channel

25 watts 300 watts

A/V Receiver Crossover Settings

Large (0 Hz)

Peak Power Handling

300 watts

Recommended Amplifier Power Per Channel

25 watts 300 watts /////////// L 400 OVERALL

Total Pieces

3

Included Accessories

(1) Cleaning cloth

(1) Removable Magnetic Grille

Carton 1

46.2 lbs (20.96 kg)

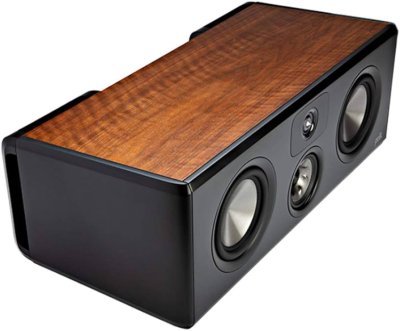

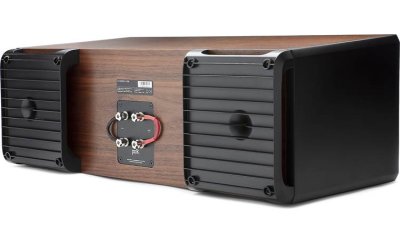

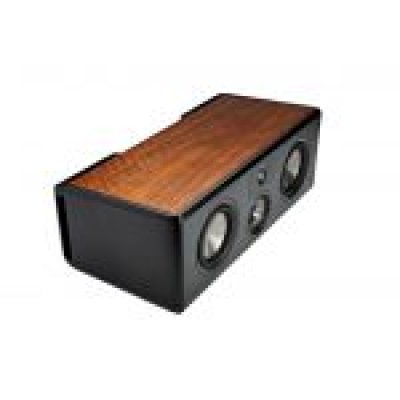

L400 Center Channel Speaker

Total Pieces

1

Orientation

Horizontal

Height

9.47" (24.05 cm)

Width

26" (66.04 cm)

Depth

13.44" (34.14 cm)

Weight

40.8 lbs (18.51 kg)

Driver Enclosure Type

Power Port Bass Vented with Sealed Midrange

Driver Complement

(1) 1" (2.54 cm) d (Round) Pinnacle Ring Radiator - Tweeter

(1) 4" (10.16 cm) d (Round) Turbine Cone - Midrange

(2) 6.25" (15.88 cm) d (Round) - Mid/Woofer

Recommended Amplifier Power Setting

80W

Total Frequency Response

42 Hz 50,000 Hz

Nominal Impedance Range

3.4 ohms 4 ohms

Sensitivity (1 watt @ 1 meter)

87.5 dB

Lower and Upper -3dB Limits

55 Hz 38,000 Hz

Type

3-way Orth Crossover

Peak Power Handling

300 watts

Midrange/Woofer Crossover Frequency

260 Hz

Tweeter/Midrange Crossover Frequency

2700 Hz

Power Handling (per channel)

25 watts 300 watts //////////// L200 POLK AUDIO LEGEND L200 Flagship Bookshelf Speakers OVERALL




Total Pieces5




Included Accessories (1) Cleaning cloth

(2) Removable Magnetic Grilles

Carton 149.8 lbs (22.59 kg)

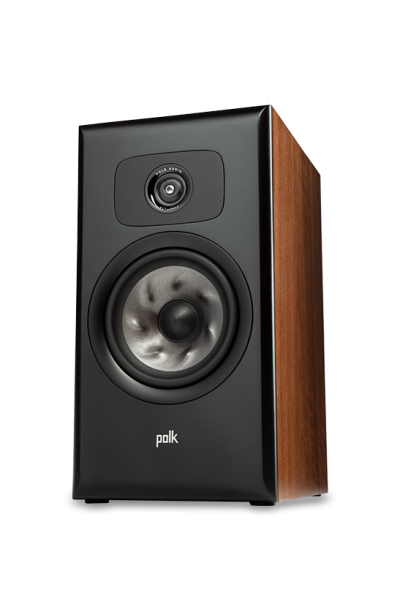

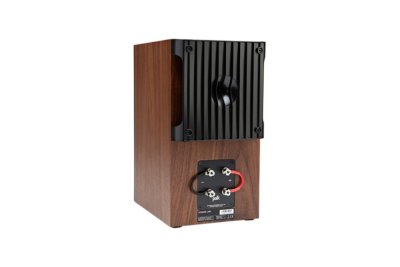

L200 Bookshelf Speakers




Total PiecesPair




OrientationVertical




Height15.66" (39.78 cm)




Width8.33" (21.16 cm)




Depth13.3" (33.78 cm)




Weight (each)22 lbs (9.98 kg)




Driver Enclosure TypePower Port Bass Vented




Driver Complement (1)  1" (2.54 cm) d (Round) Pinnacle Ring Radiator - Tweeter

(1)  6.5" (16.51 cm) d (Round) Turbine Cone - Mid/Woofer

Recommended Amplifier Power Setting80W




Total Frequency Response38 Hz 50,000 Hz




Nominal Impedance Range3.6 ohms 4 ohms




Sensitivity (1 watt @ 1 meter)85.5 dB




Lower and Upper -3dB Limits46 Hz 38,000 Hz




Type2-way Orth Crossover




Peak Power Handling200 watts




Tweeter/Midrange Crossover Frequency2600 Hz




Power Handling (per channel)20 watts 200 watts
